DRK
Electromagnetic Clutch

Size: 01, 02, 03, 04, 05, 06, 07, 08*, 09*, 10*

Product Features:

  • Torque in the range of 8 - 480 Nm
  • 7 different sizes
  • 4 different design option according to the application area
  • Standart voltage 24 V
  • Designed modular structure and easy assembly for
  • applications
  • IP 20 protection class
  • HC class enamel coil wire insulation (200 °C)
  • Metal parts are coated to resist corrosion
  • Brake coil insulated with epoxy resin
  • Short switching times
  • Brake operating sound level < 70 dB
  • Asbestos-free, low wear rate and long life linings
  • It is designed according to 100% working principle
Assembly Applications Catalogue 3D Model

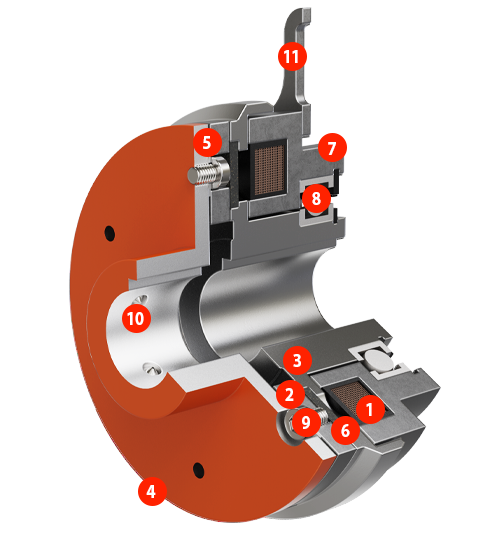

Operating Principles

DRK series brakes are current applied clutches. When energy applies to the brake coil (1), the coil becomes an electromagnet, which creates a magnetic flux. This magnetic flux ensures the pressure flange (2) to pull towards the brake coil, allows shaft and armature (4) to rotate at the same speed. When the energy is cut off, the pressure flange returns to its former position due to the lamella spring (5) and the shafts rotate independently of each other.

1Brake Coil

2Pressure Flange

3Rotor

4Armature

5Lamella Spring

6Lining

7Body

8Bearing

9Pressure Flange Assembly Screw

10Shaft Fixing Set Screw

11Fixing Arm

1 2 3 4 5 6 7 8 9 10 11
DRK | DRK01 - RULMANLI-8 Nm Dizayn 3.1 Teknik Verileri İndir
DRK | DRK01 - RULMANLI-8 Nm Dizayn 3.3 Teknik Verileri İndir
DRK | DRK02 - RULMANLI-16 Nm Dizayn 3.1 Teknik Verileri İndir
DRK | DRK02 - RULMANLI-16 Nm Dizayn 3.3 Teknik Verileri İndir
DRK | DRK03 - RULMANLI-32 Nm Dizayn 3.1 Teknik Verileri İndir
DRK | DRK03 - RULMANLI-32 Nm Dizayn 3.3 Teknik Verileri İndir
DRK | DRK04 - RULMANLI-65 Nm Dizayn 3.1 Teknik Verileri İndir
DRK | DRK04 - RULMANLI-65 Nm Dizayn 3.3 Teknik Verileri İndir
DRK | DRK05 - RULMANLI-120 Nm Dizayn 3.1 Teknik Verileri İndir
DRK | DRK05 - RULMANLI-120 Nm Dizayn 3.3 Teknik Verileri İndir
DRK | DRK06 - RULMANLI-240 Nm Dizayn 3.1 Teknik Verileri İndir
DRK | DRK06 - RULMANLI-240 Nm Dizayn 3.3 Teknik Verileri İndir
DRK | DRK07 - RULMANLI-480 Nm Dizayn 3.1 Teknik Verileri İndir
DRK | DRK07 - RULMANLI-480 Nm Dizayn 3.3 Teknik Verileri İndir
DRK | DRK01 - RULMANSIZ-8 Nm Dizayn 1.1 Teknik Verileri İndir
DRK | DRK01 - RULMANSIZ-8 Nm Dizayn 1.3 Teknik Verileri İndir
DRK | DRK02 - RULMANSIZ-16 Nm Dizayn 1.1 Teknik Verileri İndir
DRK | DRK02 - RULMANSIZ-16 Nm Dizayn 1.3 Teknik Verileri İndir
DRK | DRK03 - RULMANSIZ-32 Nm Dizayn 1.1 Teknik Verileri İndir
DRK | DRK03 - RULMANSIZ-32 Nm Dizayn 1.3 Teknik Verileri İndir
DRK | DRK04 - RULMANSIZ-65 Nm Dizayn 1.1 Teknik Verileri İndir
DRK | DRK04 - RULMANSIZ-65 Nm Dizayn 1.3 Teknik Verileri İndir
DRK | DRK05 - RULMANSIZ-120 Nm Dizayn 1.1 Teknik Verileri İndir
DRK | DRK05 - RULMANSIZ-120 Nm Dizayn 1.3 Teknik Verileri İndir
DRK | DRK06 - RULMANSIZ-240 Nm Dizayn 1.1 Teknik Verileri İndir
DRK | DRK06 - RULMANSIZ-240 Nm Dizayn 1.3 Teknik Verileri İndir
DRK | DRK07 - RULMANSIZ-480 Nm Dizayn 1.1 Teknik Verileri İndir
DRK | DRK07 - RULMANSIZ-480 Nm Dizayn 1.3 Teknik Verileri İndir
Request Form

Please fill out the form below. You will be responded to as soon as possible. We thank you.

Submit
PDF Catalog
Areas of Application

  • Automation systems
  • Automatic door systems
  • Printing machines
  • Textile machines
  • Conveyor belt systems
  • Packaging systems
  • Balancing machines

Assembly Designs

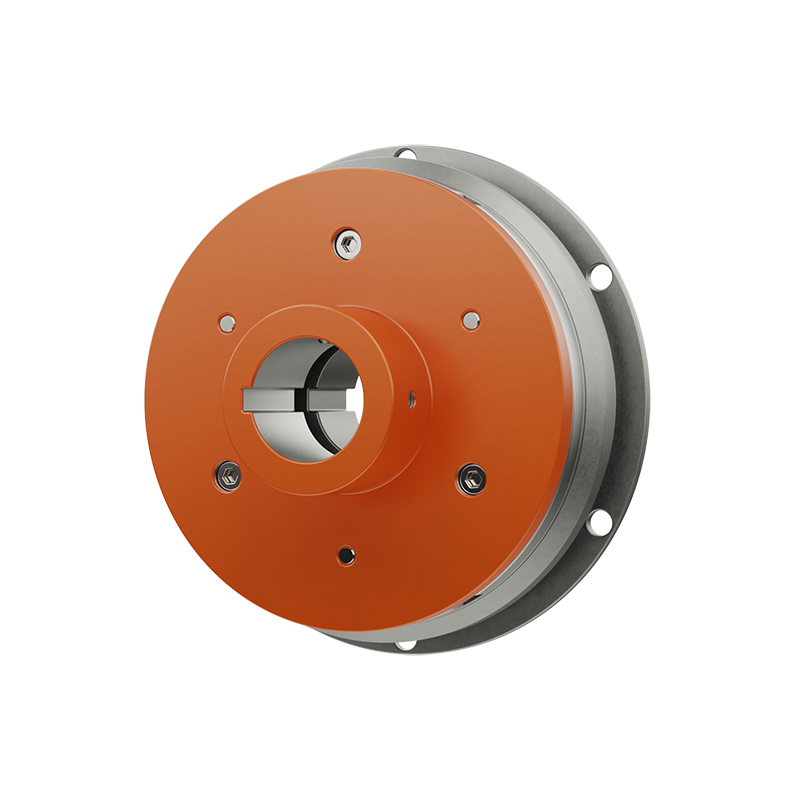

DRK Design 1.1

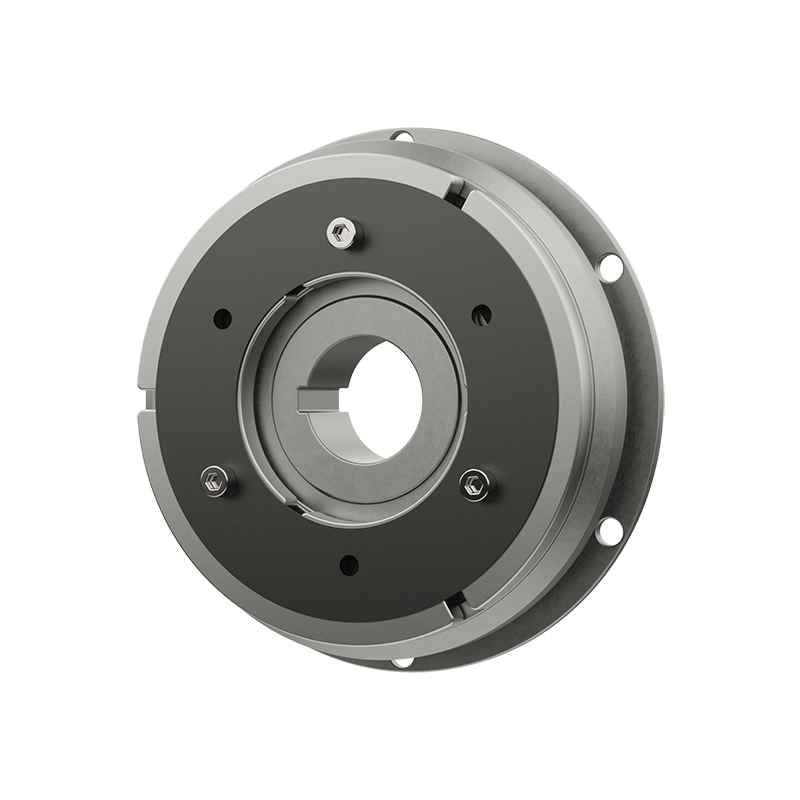

DRK Design 1.3

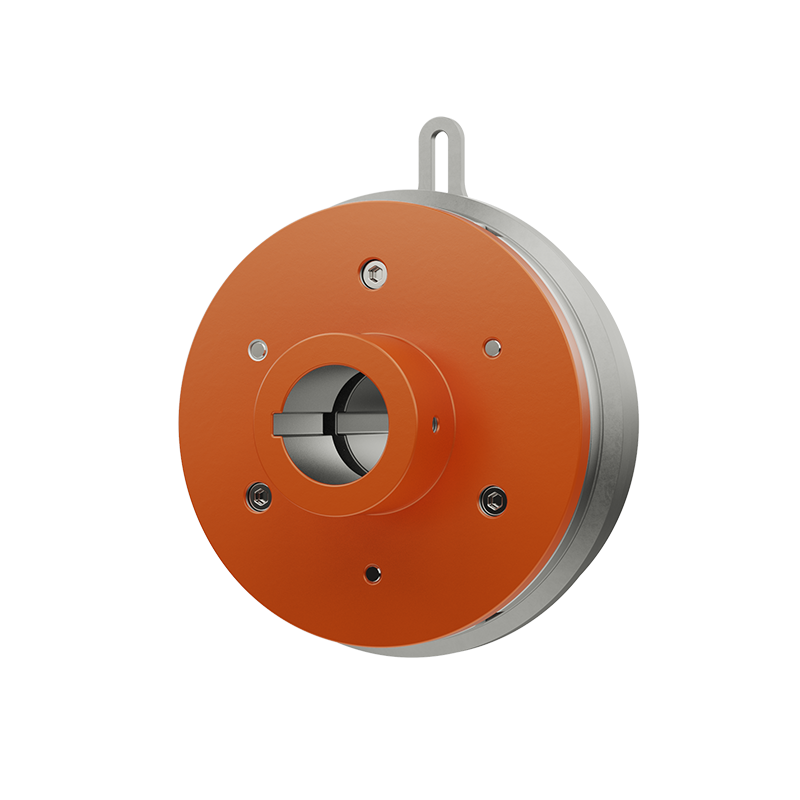

DRK Design 3.1

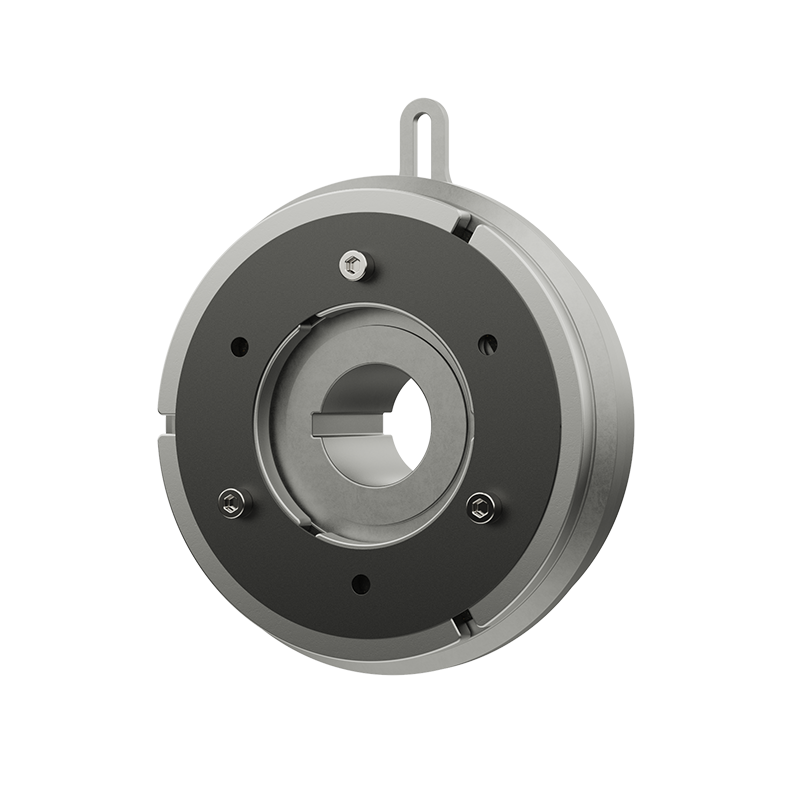

DRK Design 3.3

Assembly Applications

DRK 1.3 Assembly Type



In DRK series clutches, it is an assembly type that transfers the movement of a constantly rotating shaft to the pulley on the same shaft.

DRK 3.1 Assembly Type



In DRK series clutches, it is an assembly type that allows the movement of a constantly rotating shaft to be transfer to another one shaft on the same axis.
