DHF
Spring Applied Compact Brake

Size: 63, 71, 80, 90, 100, 112, 132, 160

Product Features:

  • Torque in the range of 2,5 Nm - 30 Nm
  • 8 different sizes
  • Standart voltages 24 V, 98 V, 190 V
  • Designed modular structure and easy assembly
  • for applications
  • Adjustable working gap and braking torque
  • IP 54 protection class
  • HC class enamel coil wire insulation (200 °C)
  • Metal parts are coated to resist corrosion
  • Brake coil insulated with epoxy resin
  • Short switching times
  • Brake operating sound level < 70 dB
  • Asbestos-free, low wear rate and long life pads
  • It is designed according to 100% working principle
  • Compact design with self-cooling due to cast iron
  • propeller
  • Softer braking than the other brake
Assembly Applications Catalogue 3D Model

Operating Principles

DHF series brakes are compact spring applied brakes. When energy applies to the brake coil (1), a magnetic field creates. This magnetic field overcomes the force of the pressure springs (2) and ensures the pressure flange (3) to compresses the springs and pull them towards the coil, and the cast iron propeller (4), which is keyed to the rotor shaft, rotates freely. When the energy is cut off, the magnetic field disappears, the compressed springs releases and they ensures push the pad (5), which is connected to the pressure flang, towards the cast iron propeler and braking.

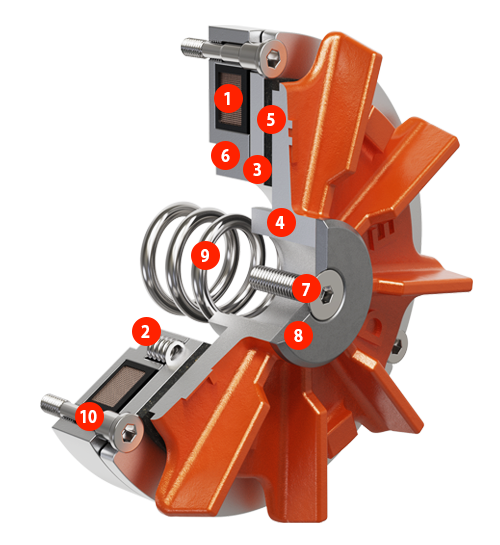

1Brake Coil

2Pressure Spring

3Pressure Flange

4Cast Iron Propeller

5Brake Pad

6Brake Body

7Adjustment Screw

8Adjustment Screw Washer

9Tension Spring

10Brake Connection Screw

1 2 3 4 5 6 7 8 9 10
Request Form

Please fill out the form below. You will be responded to as soon as possible. We thank you.

Submit
PDF Catalog
Areas of Application

  • Woodworking machines
  • Crane executive systems
  • Packaging machines
  • Automatic door systems
  • Work safety equipment

Assembly Applications

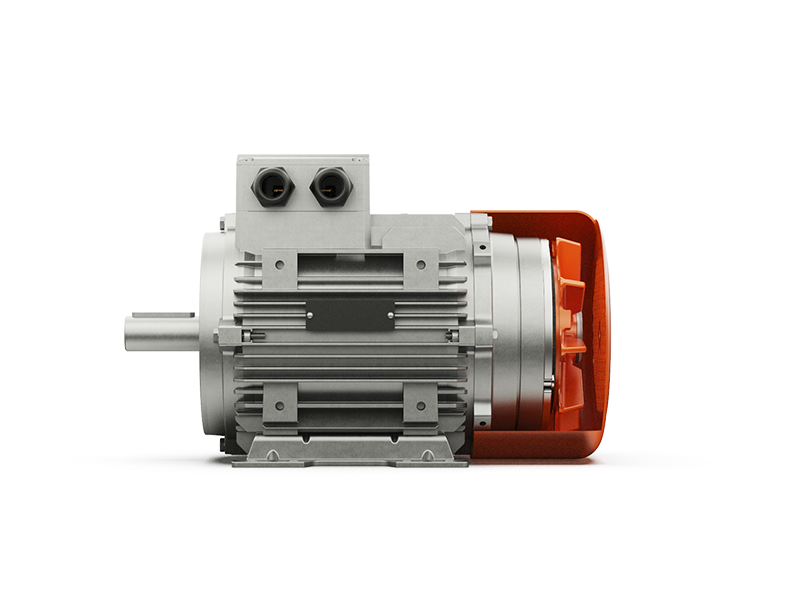

Compact Cooled Type Brake Assembly



It is the standard application of DHF Spring applied Compact Cooled brakes. It is preferred in applications that require soft stopping. It is mainly used in the furniture industry and in horizontal applications.
